Height post machines are available in single needle or double needle version. Post height is 208 mm, 302 mm ansd 436,5 mm. Machines are used for joining of light-and medium duty leather materials. High post machine is your perfect solution for assembly seams on long boots or leather goods.
Your advantages:
■■ Highest precision on stitch locking even during sewing speed changes
■■ Secured sewing start after cutting can be influenced by movable needle plate inserts
■■ Automatic bobbin winder with start up function
■■ Manual switchable second thread tension for optimised sewing results (ECO)
■■ Low noise and vibration
■■ The powerful and effective feeding system with wheel feed,needle feed and driven roller presser guarantees excelent material feed when processing different material thicknesses
■■ An easy replacement of wheel feeder without tools (single- needle machines)
■■ Standard hoko with 26 mm bobbin
■■ Simple needle guard adjustment by screw
■■ Fast dismantling of hook
■■ Needle change without tools (single needle machines)
■■ Lubricating system with central oil tank and oil pump
■■ Roller presser setting by operator without tools (optional)
■■ Integrated built-in motor to save energy, easy maintenance
■■ Fully integrated solenoids (CLASSIC), no compressed air required
■■ Integrated LED sewing light (optional)
■■ Easy maintenance and access, only a few tools needed
Machines are mainly used in leather shoe industry for joining and closing operations mostly on long boots.

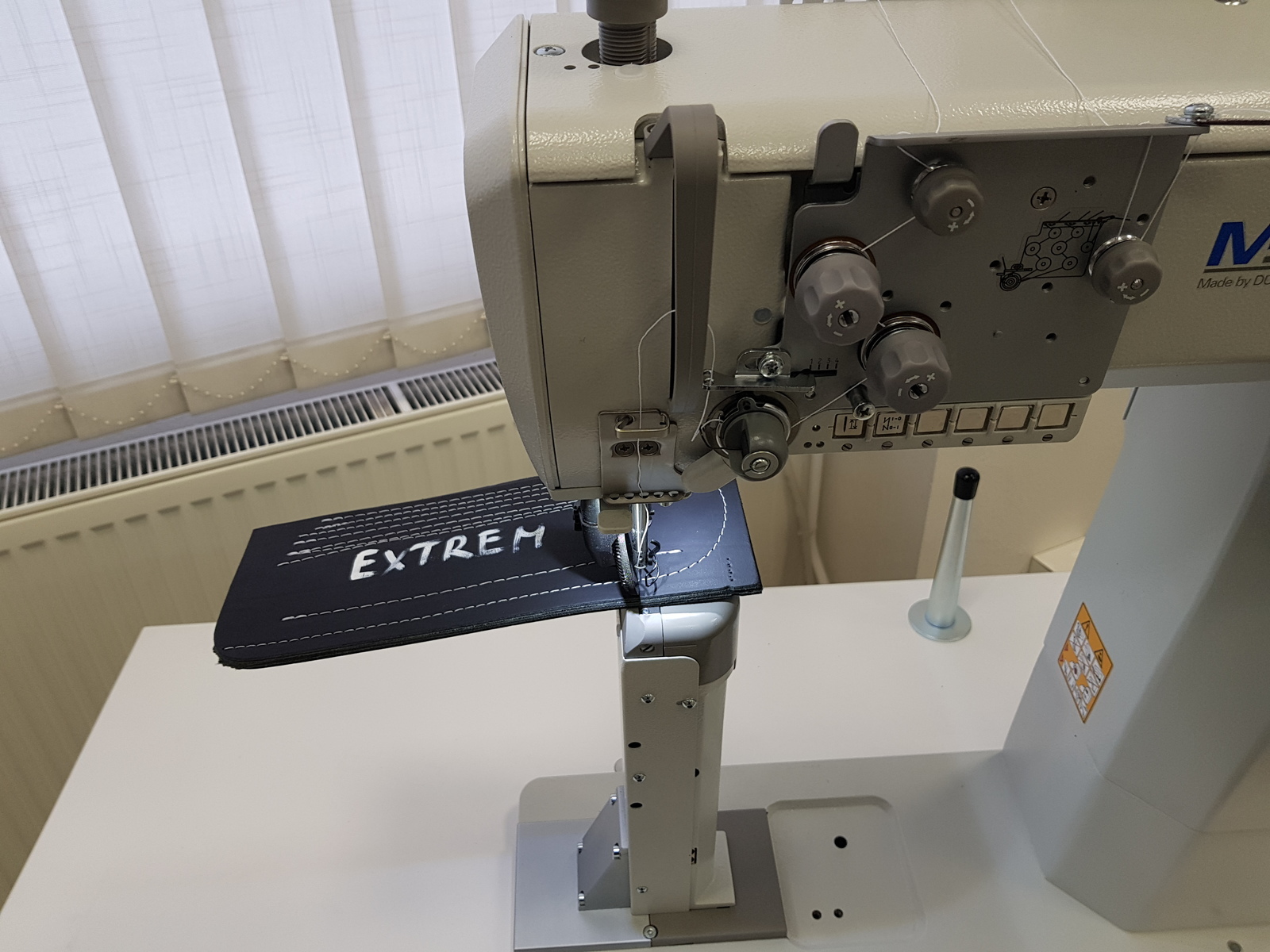

Single needle and double needle high post machines in CLASSIC version - hook area.
