669-180312

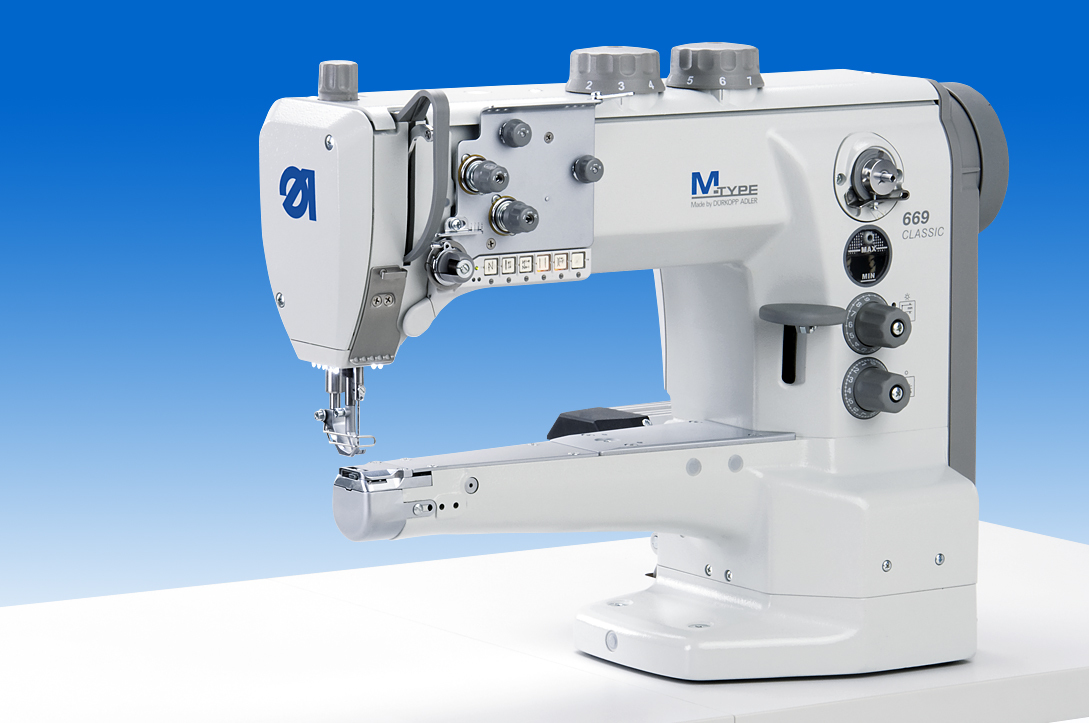

Single needle lockstitch free arm machine for universal use
Cylinder arm sewing machine
Single needle
Lockstitch
Bottom feed and needle feed
Horizontal hook, large
Sewing foot lift, automatic
Thread trimmer and seam backtacking, automatic
Pneumatic
669-180312
669-180312
669-180312
669-180312

669
CLASSIC

Single needle lockstitch free arm machine for universal use




Sewing processes on tubular workpieces make highest demands on the qualification of the operator and on the efficiency of the sewing technology. The subclasses of the new M-TYPE free arm machine 669 with particularly slim machine arm make it possible to professionally realize difficult sewing processes like assembly and binding operations as well as decorative stitching on small leather goods and difficultly accessible or tubular workpieces. A special feature of the 669 is its ability to bind the material edge with low tension. For this operation the bottom feed stroke can be deactivated by just a few steps which enables an optimum feeding movement. Sewing equipment especially adapted to this sewing operation allows a precise binding result combined with maximum productivity and quality. Choose your favourite from the three equipment variants: Due to outstanding performance parameters the 669 ECO offers high functionality and flexibility – at an attractive price. The 669 CLASSIC Silverline is equipped with automatic basic functions. The 669 CLASSIC Goldline is characterized by further additional functions for higher productivity and increased sewing comfort.





Your advantages:



  • 669 ECO – high functionality and flexibility at an attractive price
  • 669 CLASSIC Silverline – with automatic basic functions like thread trimmer, automatic sewing foot lift and automatic backtacking
  • 669 CLASSIC Goldline – with automatic basic functions and additional functions like integrated second stitch length, integrated second thread tension, quick stroke adjustment, maintenance indicator and integrated LED sewing lamp
  • Slim machine arm diameter of only 50 mm facilitates the handling of difficultly accessible seam areas
  • Adjustable bottom feed (with stroke for topstitching operations, without stroke for binding operations)
  • Quick change to binding applications
  • New hook with large bobbin capacity for longer sewing cycles and a wider sewing thread spectrum
  • High productivity due to increased speed up to 3,000 stitches/min.
  • Excellent climbing properties avoid shortened stitches and material damage at thick spots or cross seams
  • Smooth, adapted sewing and feeding properties by means of quick stroke adjustment with automatic speed reduction (CLASSIC Goldline)
  • New hook cover allows time-saving bobbin change
  • New thread trimming system for sewing threads up to 15/3 (CLASSIC)
  • Pneumatic additional thread tension for excellent stitch formation when sewing over thick spots (CLASSIC Goldline)
  • Safety clutch protects against hook damage
  • New lubricating system with adjustable hook lubrication
  • Sewing drive fastened at the machine head





Equipment features:



  • The powerful and effective feeding system with bottom feed, needle feed and alternating feet guarantees a trouble-free and displacement- free material feed when processing most different fabric thicknesses and structures
  • The extremely high sewing foot lift up to 20 mm max. facilitates the feeding and removing of bulky workpieces
  • High top feed stroke up to 9 mm allows then safe climbing over thick material plies
  • Up to 9 mm long stitches for standard seams and decorative topstitching
  • The large clearance (335 mm wide and 125 mm high) facilitates the handling of tubular workpieces
  • Excellent view on the sewing area
  • Integrated bobbin winder with winding starting aid
  • Maintenance-friendly design
  • Low noise level
  • Automatic backtacking, (CLASSIC)
  • Integrated second stitch length (CLASSIC Goldline)
  • Integrated LED sewing lamp for a shadowless lighting of the sewing point (CLASSIC)
  • Integrated 6-function keypad with ergonomically arranged favourite key (CLASSIC)
  • Integrated maintenance indicator (CLASSIC)
  • The complete range of sewing equipment, attachments and optional equipment guarantees the optimum equipment solution for nearly all sewing operations

669-180112 CLASSIC Goldline

equipped with automatic basic functions and further functions like integrated second stitch length, integrated second thread tension, quick stroke adjustment, maintenance indicator and integrated LED sewing lamp

For download
