52Xi-PB

52Xi_188 mm_294 mm
Post bed zig zag machines
Post bed sewing machine
52Xi-PB
52Xi-PB
52Xi-PB
52Xi-PB
52Xi-PB

Zigzag machines are also available with posts. Customers may choose between various post heights to fulfil the desired sewing operations adequately.



General advantages:



■■ Modified lubrication and a reservoir in the machine arm reduce maintenance, guarantee the correct lubrication doses and protect the hook against wear.

■■ Needle thread tension regulation for more precise tension adjustment

■■ Ergonomic bobbin winder with easier adjustment of max. value

■■ Improved working conditions for the operator by reduced noise level and less vibrations

■■ Modern zigzag setting device – easy adjustment of zigzag width with low force

■■ Easy stitch length setting – adjustment without lever by turn button

■■ Back tacking and needle position up/down via push buttons (CLASSIC)

■■ Use of incorporated mini motor and quick connection from the head to the motor (CLASSIC)

■■ Integrated LED sewing light (optional)



Post bed zig zag machines

■■ Available as ECO version

■■ With various heights of post

■■ Version with electronic motor for needle positioning

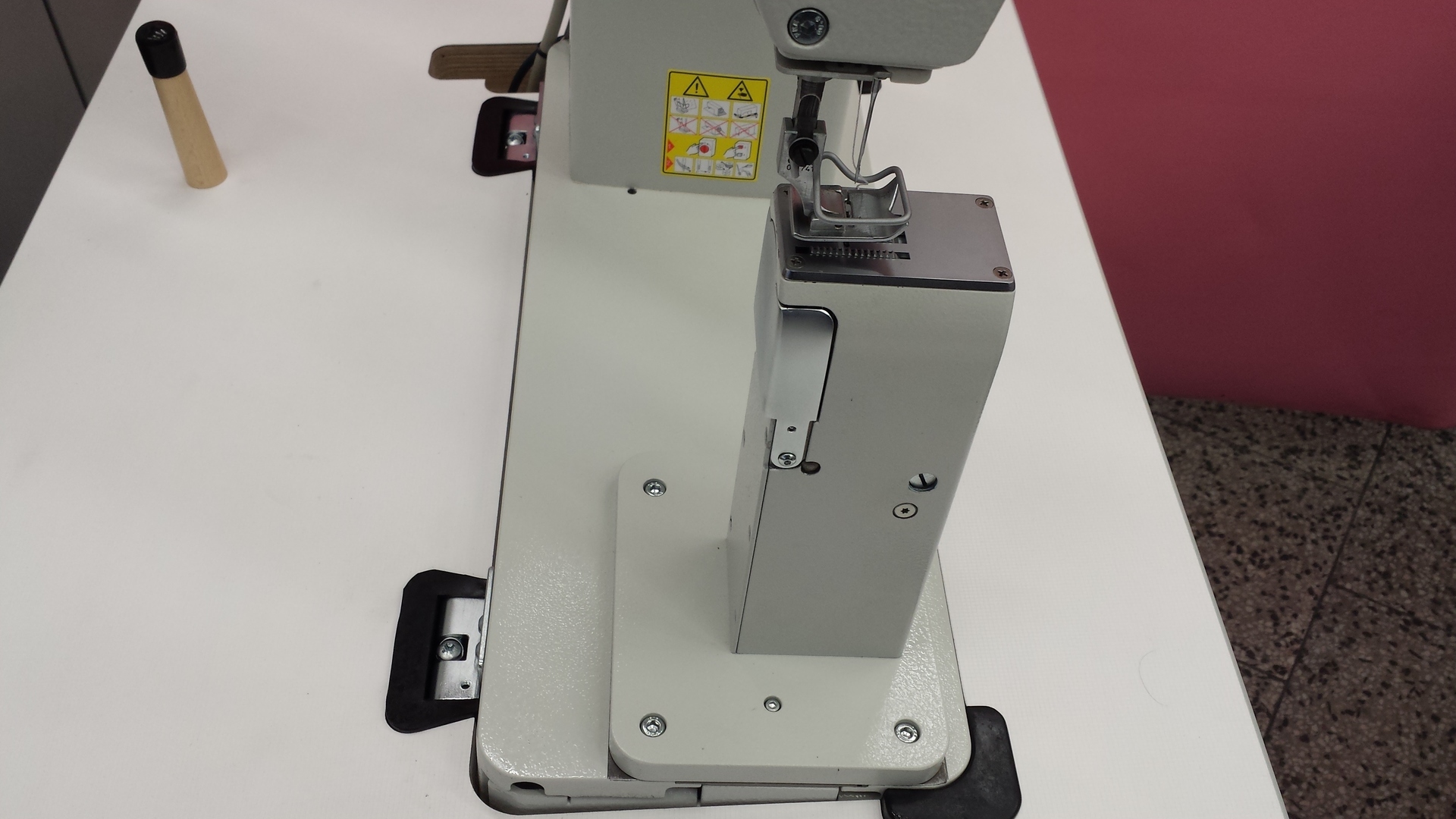

This machine is mostly used in the shoe industry, for joining operations on large-sized shoes and boots. Lining materials, as well as upper leather, are sewn easily.



Dimensions of post are 67 x 54 mm

Post bed zigzag machine, available with post heights of 188 mm or 294 mm.
