887-160122-M

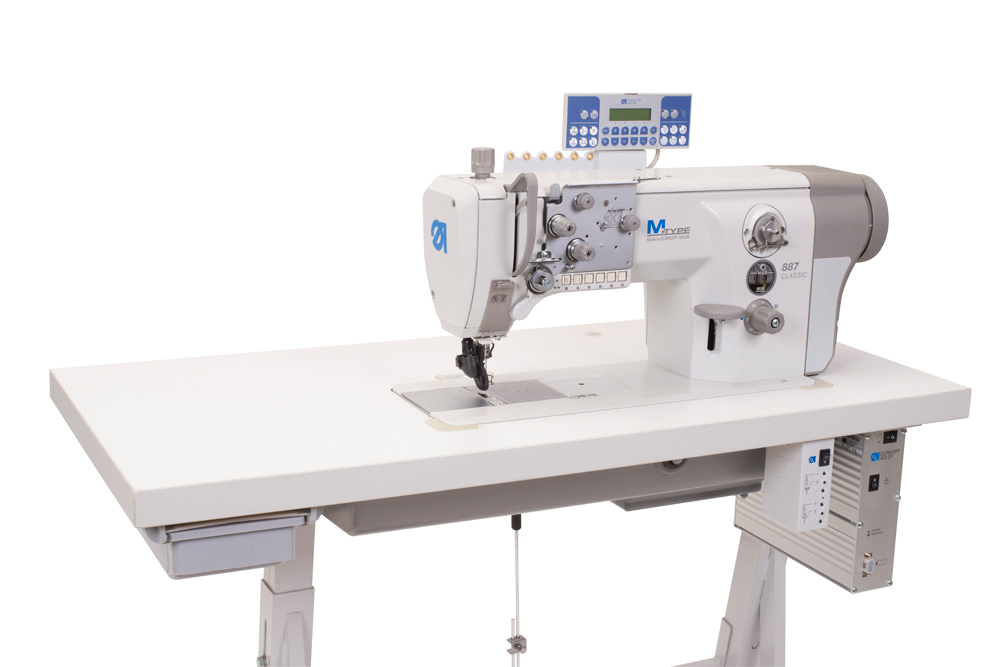

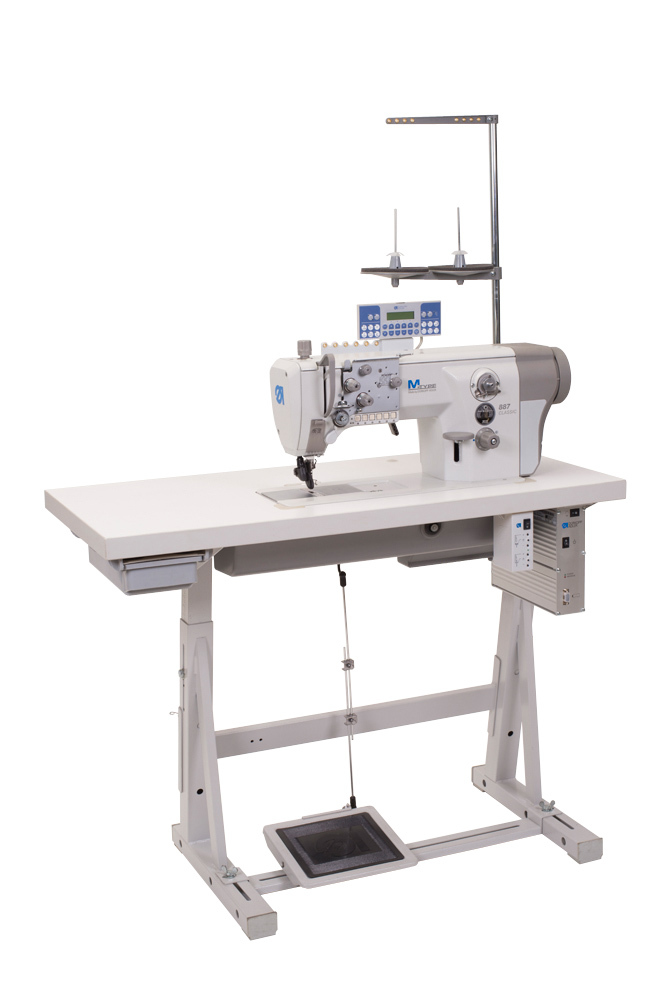

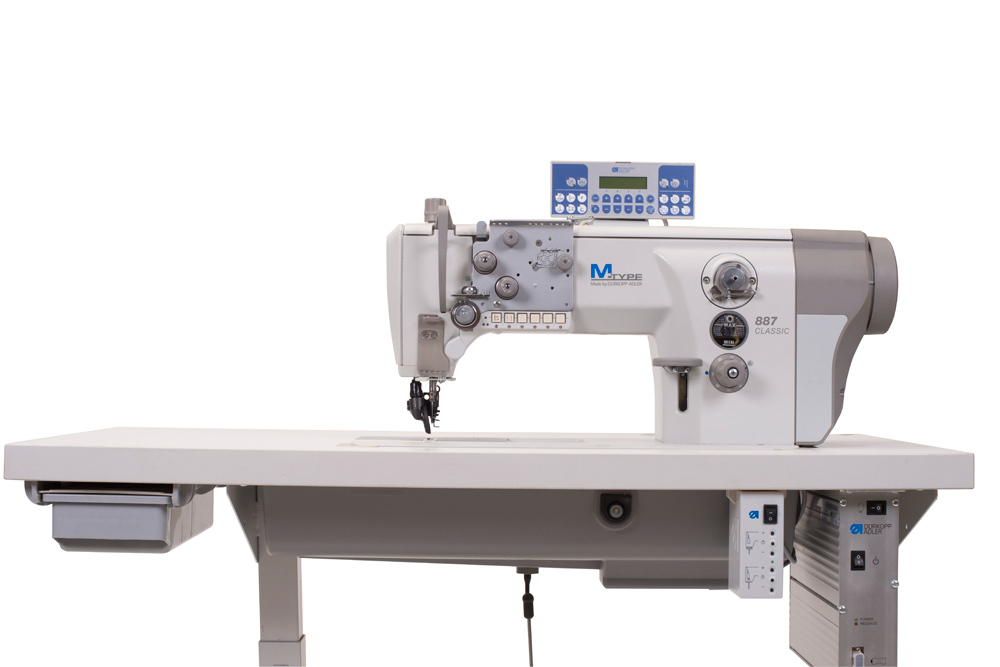

Single needle lockstitch flat bed machine with wheel feed, needle feed and driven roller presser foot.
Flat bed sewing machine
Single needle
Lockstitch
Top and bottom wheel feed and needle feed
Vertical hook, large
Seam backtacking, actuated by hand
Seam backtacking, thread trimming and sewing foot lift, automatic
887-160122-M
887-160122-M
887-160122-M

887-M
CLASSIC

Single needle lockstitch flat bed machines for stitching operations in the shoe production with integrated Direct Drive




The M-TYPE generation of flat bed machine class 887-M, has set new standards in the shoe production. When developing the new series, requirements of famous shoe manufacturers were taken into account. Therefore, future-oriented concept was created, characterised by highly efficient sewing parameters, durable construction, and unique flexibility. Together with the modern design, all it make class 887-M an ideal operating means of universal use.


Your advantages



  • Highest precision on stitch locking even during sewing speed changes
  • Secured sewing start after cutting can be influenced by movable needle plate inserts
  • Automatic bobbin winder with start up function
  • Low noise and vibration
  • The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excelent material feed when processing different material thicknesses
  • Feeding wheel with cross grooving for minimized marks on the fabrics
  • Feeding wheel covered by rubber, for mark-free sewing (optional for single needle machines)
  • Equipped by large hook (26 mm bobbin)
  • Simple needle guard adjustment by screw
  • Device for controlling the difference between the upper and bottom feed from +10 % to –10 % (optional)
  • Fast dismantling of hook
  • Needle change without tools (single needle machines)
  • Lubricating system with central oil tank and oil pump
  • Roller presser setting by operator without tools (optional)
  • Integrated built-in motor to save energy, easy maintenance
  • Switch button for setting a reduced stitch, e.g. at material borders and integrated keypad with ergonomically  arranged sensor key
  • Fully integrated solenoids, no compressed air required
  • Integrated LED sewing light (optional)
  • Easy maintenance and access, only a few tools needed
