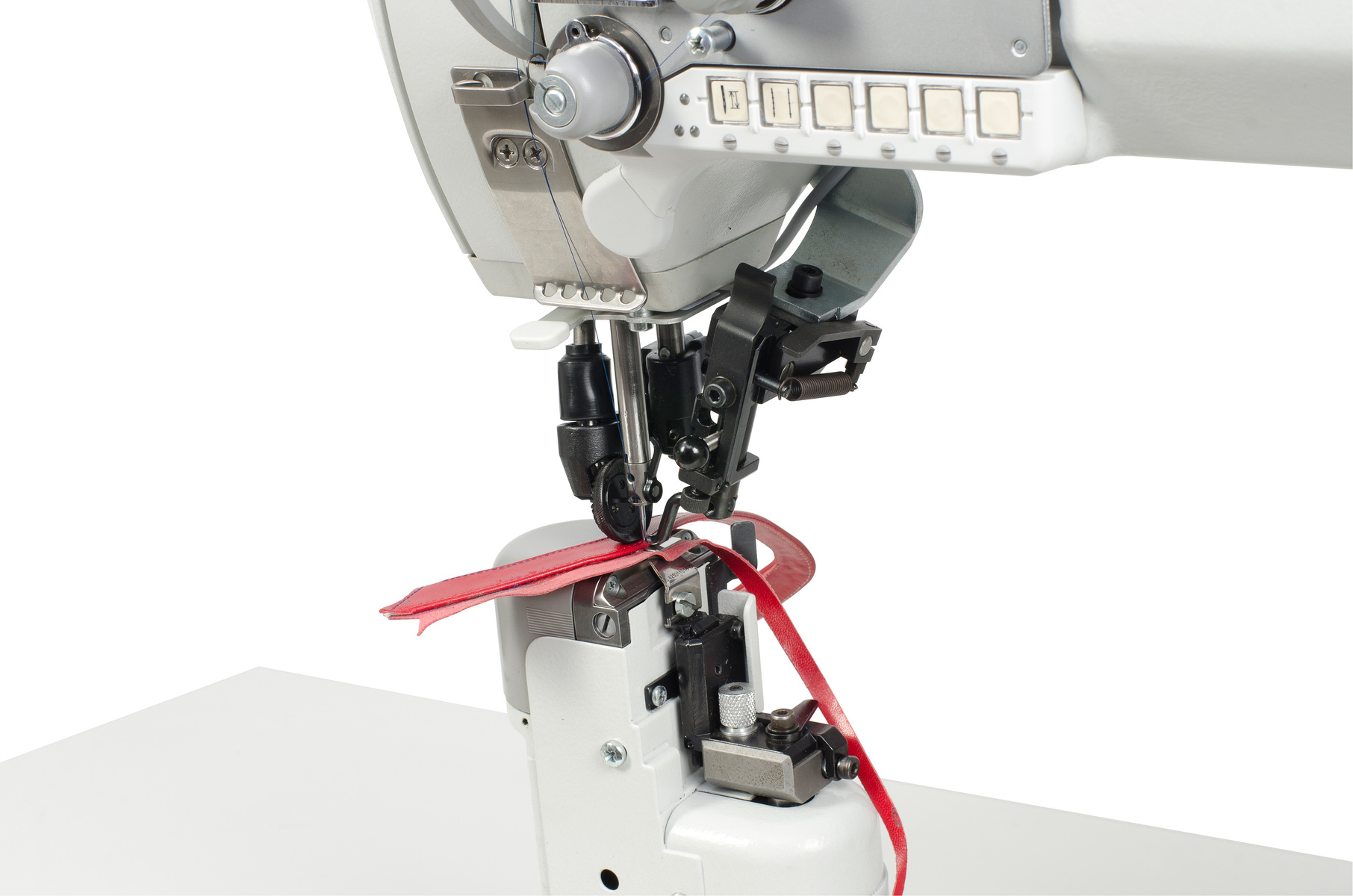

Single needle lockstitch post-bed machine with integrated Direct Drive, wheel feed, needle feed and top driven roller. With left post and lining trimmer from the bottom.
Post bed sewing machine
Single needle
Lockstitch
Top and bottom wheel feed and needle feed
Vertical hook, large
Seam backtacking, actuated by hand
Undertrimmer, motor-driven
888-356020
888-356020
888-356020
888-356020
888-356020
888-356020

888-M
ECO

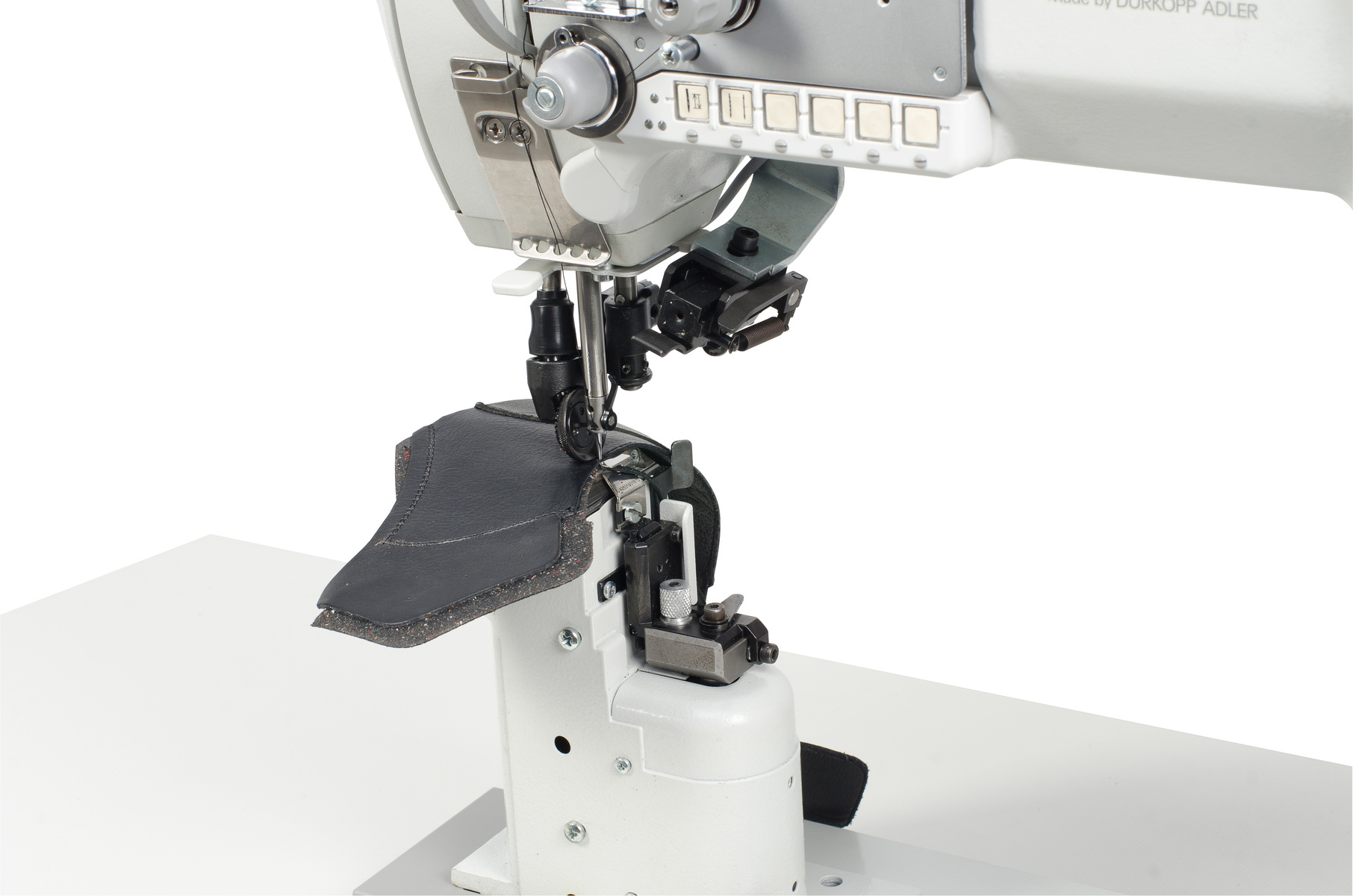

Post bed machines with integrated direct drive for inserting lining and undertrimming




The quality-based inserting of shoe lining makes high demands on the operator and also on the machines. This post bed series offers convincing solutions for almost all sewing tasks and shoe models. The precisely working material feed with double intermittent wheel feed, the needle and the driven roller foot guarantees exact stitch lengths, even when sewing over thick spots. Machines are equipped with large hook, enabling use for wide range of application. The motor-driven trimming devices work independently of the sewing speed and ensure neat cutting edges, even in case of difficult seam sections.



Your advantages



  • Highest precision on stitch locking even during sewing speed changes
  • Secured sewing start after cutting can be influenced by movable needle plate inserts
  • Automatic bobbin winder with start up function
  • Low noise and vibration
  • The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excelent material feed when processing different material thicknesses
  • Large hook (26 mm bobbin)
  • Simple needle guard adjustment by screw
  • Device for controlling the difference between the upper and bottom feed from +10 % to –10 %
  • Machines are equipped with tiltable and adjustable edge guide
  • Fast dismantling of hook
  • Needle change without tools
  • Lubricating system with central oil tank and oil pump
  • Roller presser setting by operator without tools (optional)
  • Integrated built-in motor to save energy, easy maintenance
  • Integrated LED sewing light (optional)
  • Easy maintenance and access, only a few tools needed
