887-363122-M

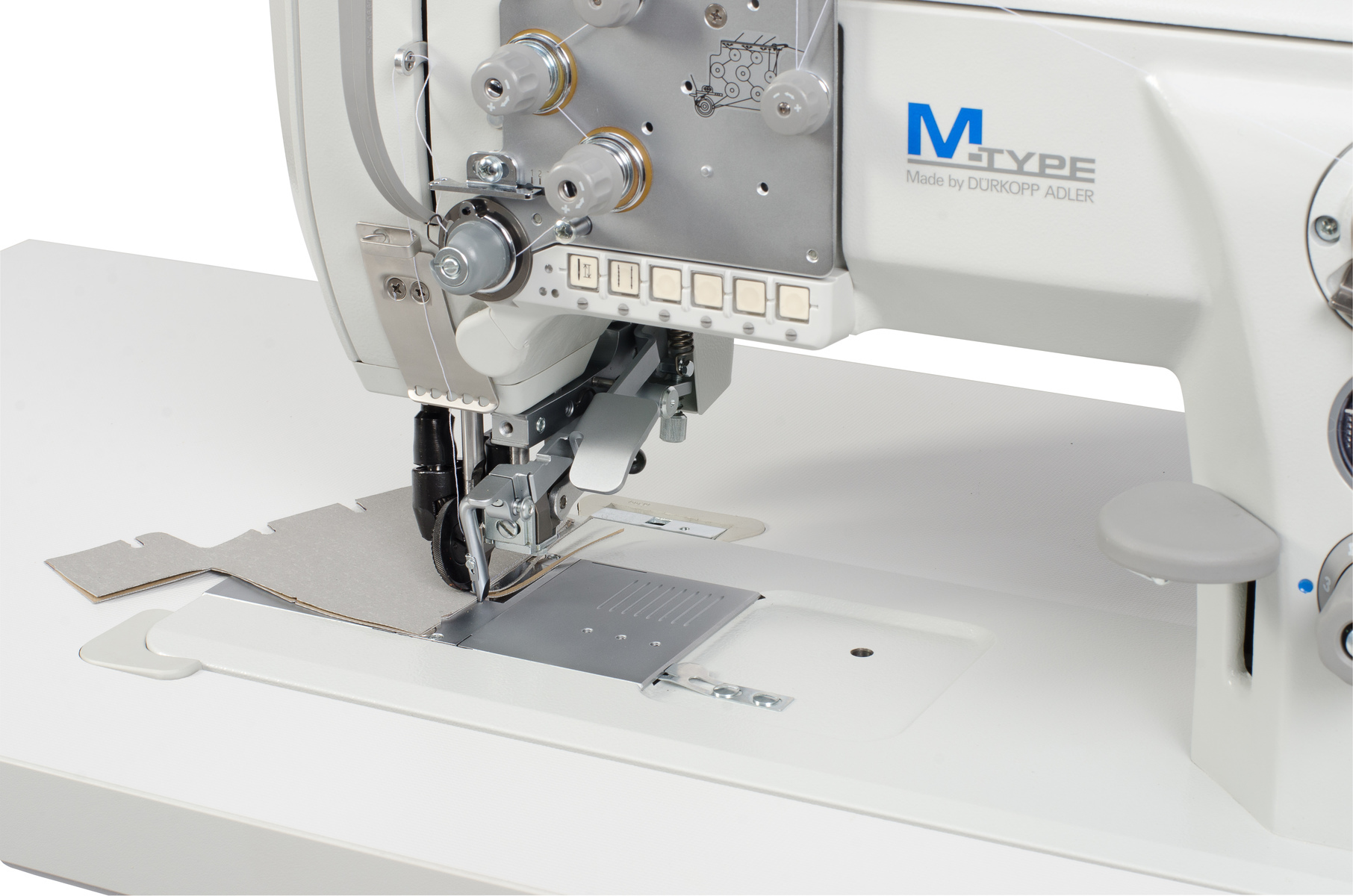

Single needle lockstitch fl atbed machine with DA Direct Drive, edge trimmer driven by electric motor, wheel feed, needle feed and top driven roller, with electromagnetic thread trimmer, auto back-tacking and auto presser-foot lift.
Flat bed sewing machine
Single needle
Lockstitch
Top and bottom wheel feed and needle feed
Vertical hook, large
Seam backtacking, thread trimming and sewing foot lift, automatic
Vertical knife, motor-driven
887-363122-M
887-363122-M
887-363122-M
887-363122-M
887-363122-M
887-363122-M
887-363122-M

887-M
CLASSIC

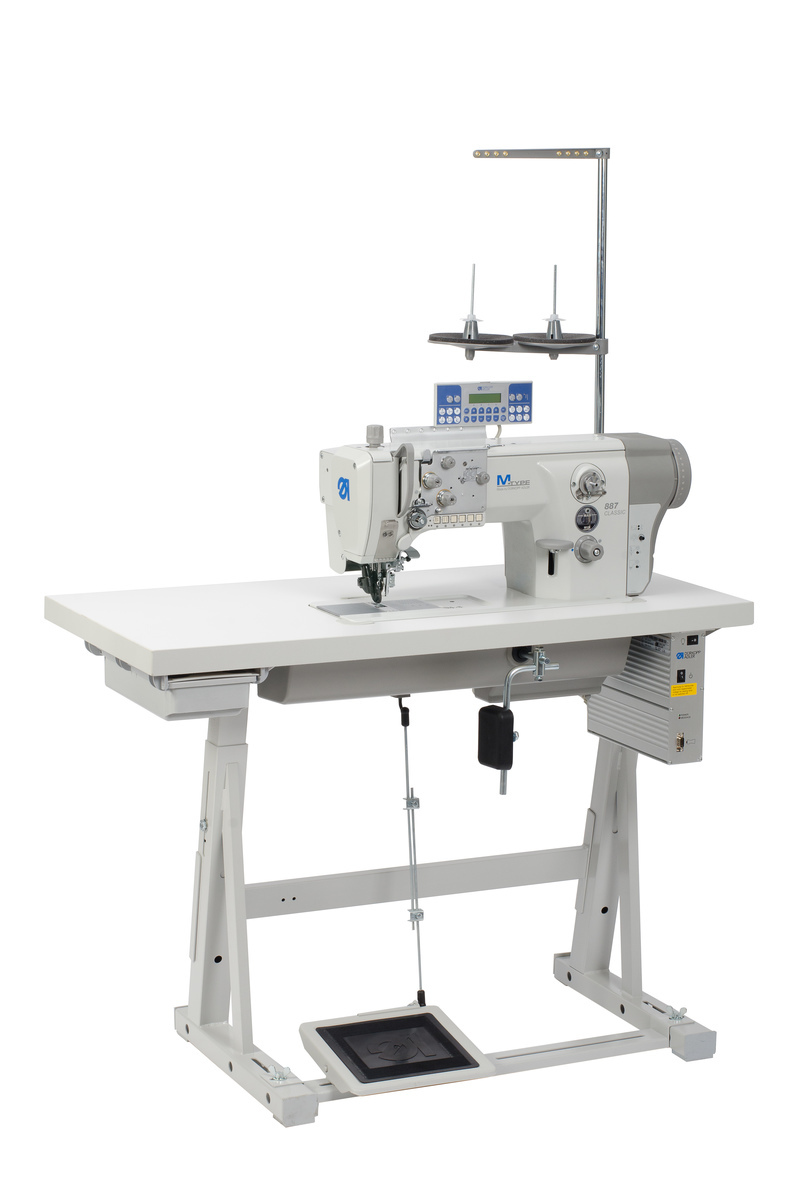

Single needle flat bed sewing machine with vertical edge trimmer with integrated DA Direct Drive




M-TYPE generation of flat bed machine class 887-M with vertical edge trimmer is suitable for wide use in automotive industry and also for shoemakers. Special shape of lower edge trimming knife increases its durability significantly. Pneumatic version brings more comfort to the operator, as well as upgraded functions.




Your advantages

  • Trimming device with vertical knife
  • Different trimming margins
  • Highest precision on stitch locking even during sewing speed changes
  •  Automatic bobbin winder with start up function
  • Low noise and vibration
  • The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excelent material feed when processing different material thicknesses
  • Feeding wheel with cross grooving for minimized marks on the fabrics
  • Equipped by large hook (26 mm bobbin)
  • Simple needle guard adjustment by screw
  • Device for controlling the difference between the upper and bottom feed from +10 % to –10 % (optional)
  • Fast dismantling of hook
  • Lubricating system with central oil tank and oil pump
  • Integrated built-in motor to save energy, easy maintenance
  • Switch button for setting a reduced stitch, e.g. at material borders (optional)
  • Integrated keypad with ergonomically arranged sensor key
  • Fully integrated solenoids (887-363122-M)
  • Integrated LED sewing light (optional)
  • Easy maintenance and access, only a few tools needed
